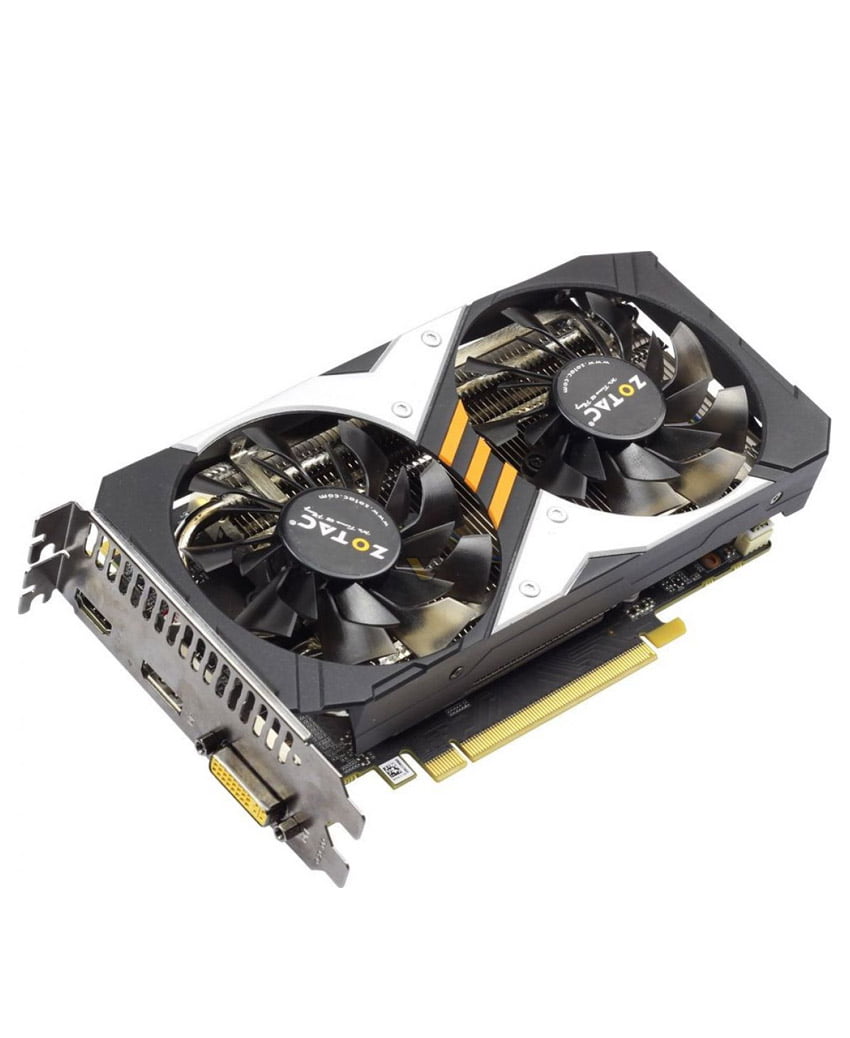

NVIDIA GTX 960 2GB DDR5 128BIT

Overview GeForce GTX 960 2GB is a Performance Graphics Card based on the Second Revision of the Maxwell architecture. Architecture The Second variant of the Maxwell Architecture, despite being also manufactured with a 28nm technology, has an extremely large L2 Cache and features a Third Generation Delta Color Compression which allows NVIDIA to produce Graphics Cards with relatively small memory data transfer rates, without causing too much impact on the overall performance. Furthermore, the Shaders have been redesigned and are both more powerful and energy efficient. The Second Revision of Maxwell also adds the VXGI (Voxel Global Illumination) Technology which makes scenes significantly more lifelike and believable as light interacts more realistically in the game environment and the MFAA Technology which provides the same effect as MSAA but at a much lower performance cost. GPU It equips a GPU Codenamed GM206-300-A1 which has 8 Stream Multiprocessors activated and thus offers 1024 Shader Processing Units, 64 TMUs and 32 ROPs. The Central Unit is initially clocked at 1127MHz and goes up to 1158MHz, in Turbo Mode. Memory The GPU accesses a 2GB frame buffer of fast GDDR5, through a 128-bit memory interface. The size of the frame buffer is adequate. The Memory Clock Operates at 1753MHz. Power Consumption With a rated board TDP of 120W, it requires at least a 400W PSU with one available 6-pin connector. Performance At 1920×1080, the best suited resolution for GeForce GTX 960, benchmarks indicate its performance is a little over the older GeForce GTX 670. Therefore, GeForce GTX 770 and even Radeon R9 280X are still faster, though less energy efficient. System Suggestions GeForce GTX 960 2GB is best suited for resolutions up to and including 1920×1080. We recommend a Strong Processor and 8GB of RAM for Optimal Performance
